Custom X-Ray CT Shield Housings
We manufacture custom sheet metal housings for industrial X-ray CT systems, combining precision fabrication with integrated shielding solutions. Our CT enclosures feature rigid structures, customized layouts, and reliable protection designs to support demanding inspection environments. From laser cutting and CNC bending to welding and finishing, we provide complete OEM manufacturing services for CT equipment suppliers.
Key Advantages of Our Industrial CT Enclosures
Our custom X-ray CT shielding enclosures are engineered to fit harsh, specialized operating conditions across multiple industrial sectors.
Our industrial CT enclosures are designed with advanced shielding structures, precision fabrication, and application-focused engineering. The steel-lead-steel composite construction provides reliable radiation protection, while rigid frames and accurate sheet metal processing ensure stable equipment integration. Optional mirror-polished stainless steel finishes support cleanroom environments, and reinforced structures improve vibration resistance for demanding industrial inspection applications. All BW CT enclosures comply with international industrial radiation safety specifications. From compact standalone lab CT cabinets to lengthy continuous production line shielding tunnels, our tailor-made sheet metal housings maintain consistent radiation blocking capability and long service life for all industrial X-ray inspection use cases.
Types of X-ray CT Shield Enclosures

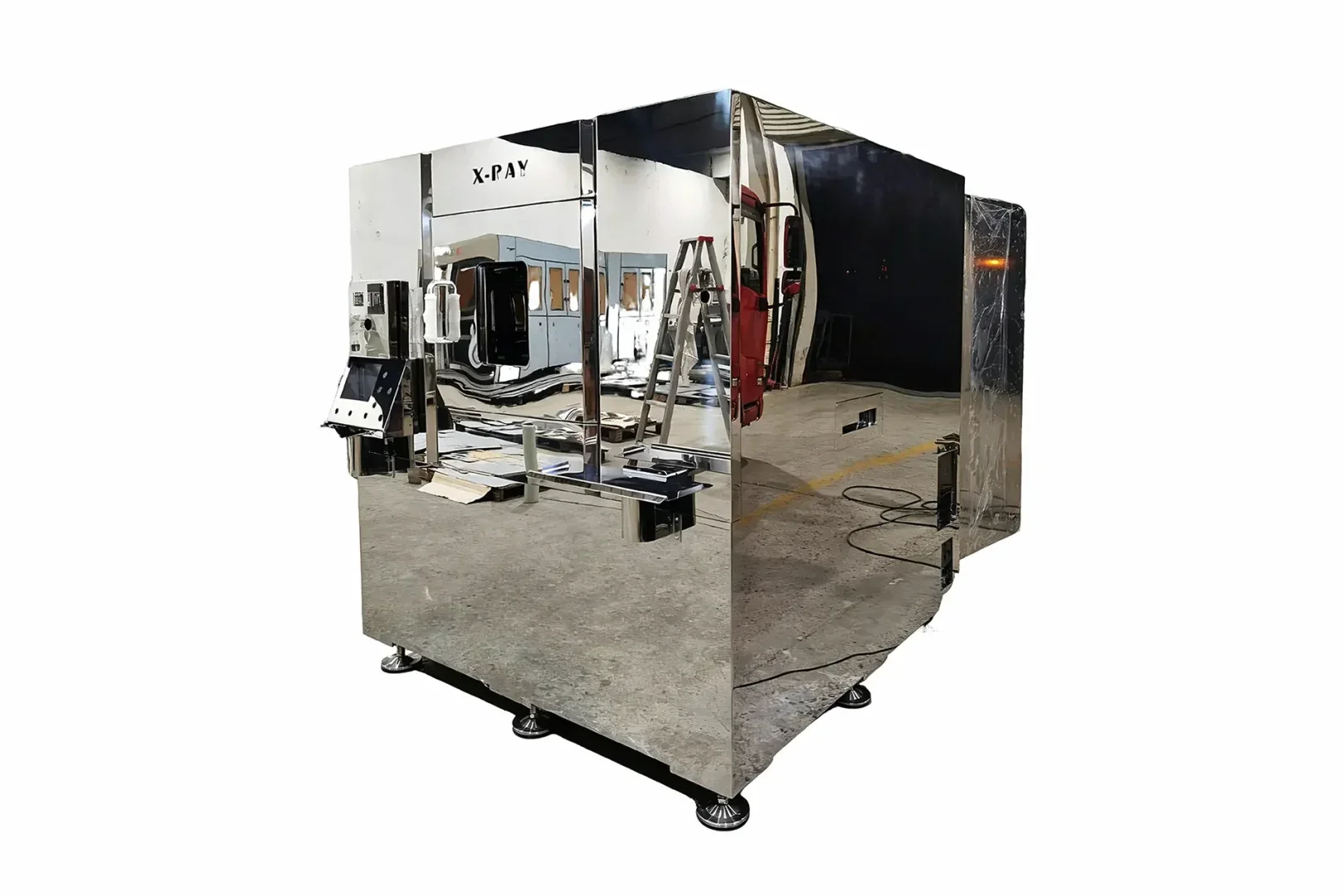

Semiconductor CT Enclosure
Precision stainless steel housing for wafer inspection and cleanroom CT applications with dust-resistant construction.
Battery Inspection CT Enclosure
Custom radiation-shielded housings designed for lithium battery inspection systems and automated production lines.

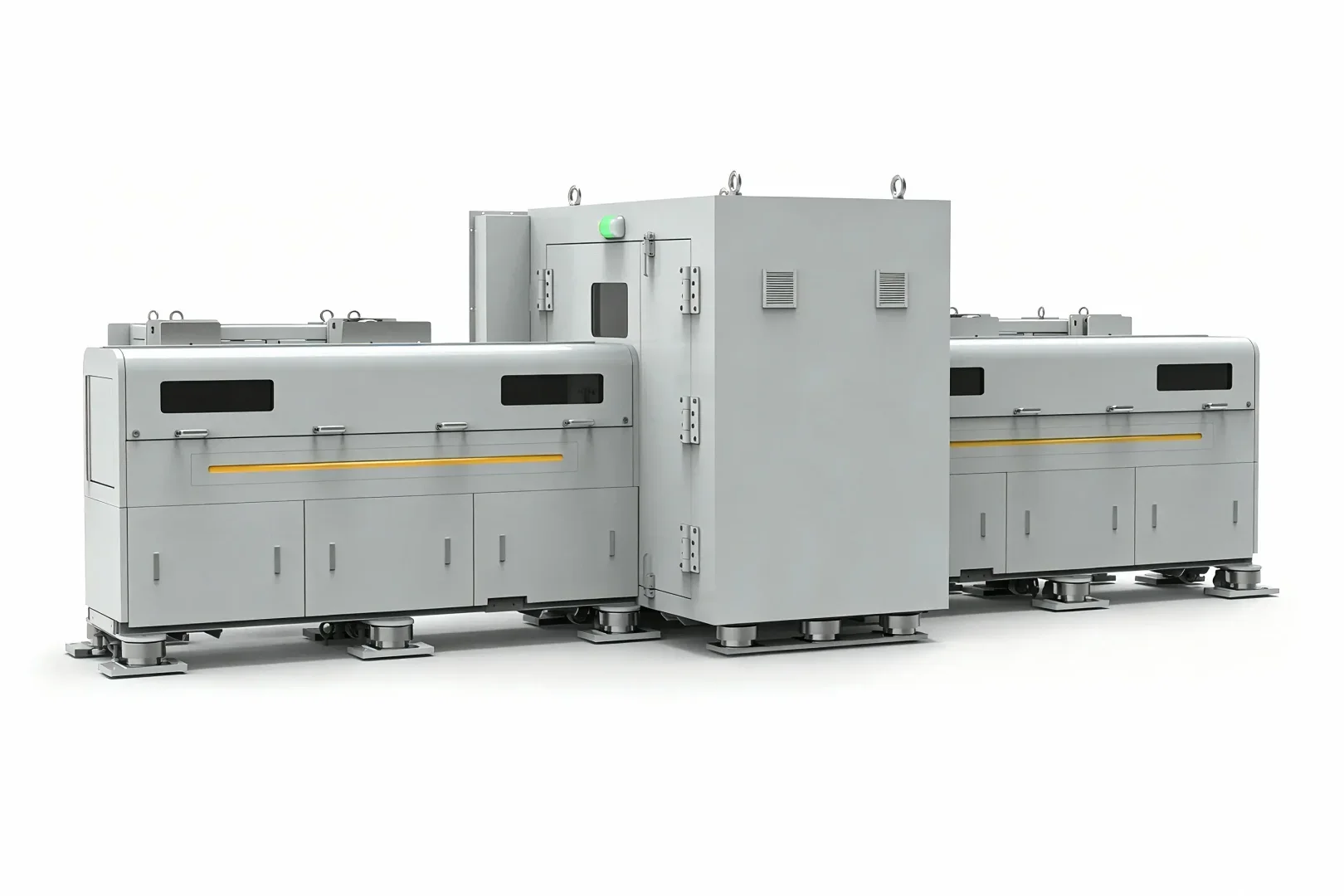

Offshore CT Enclosure
Heavy-duty protective housing with vibration resistance and corrosion protection for harsh inspection environments.

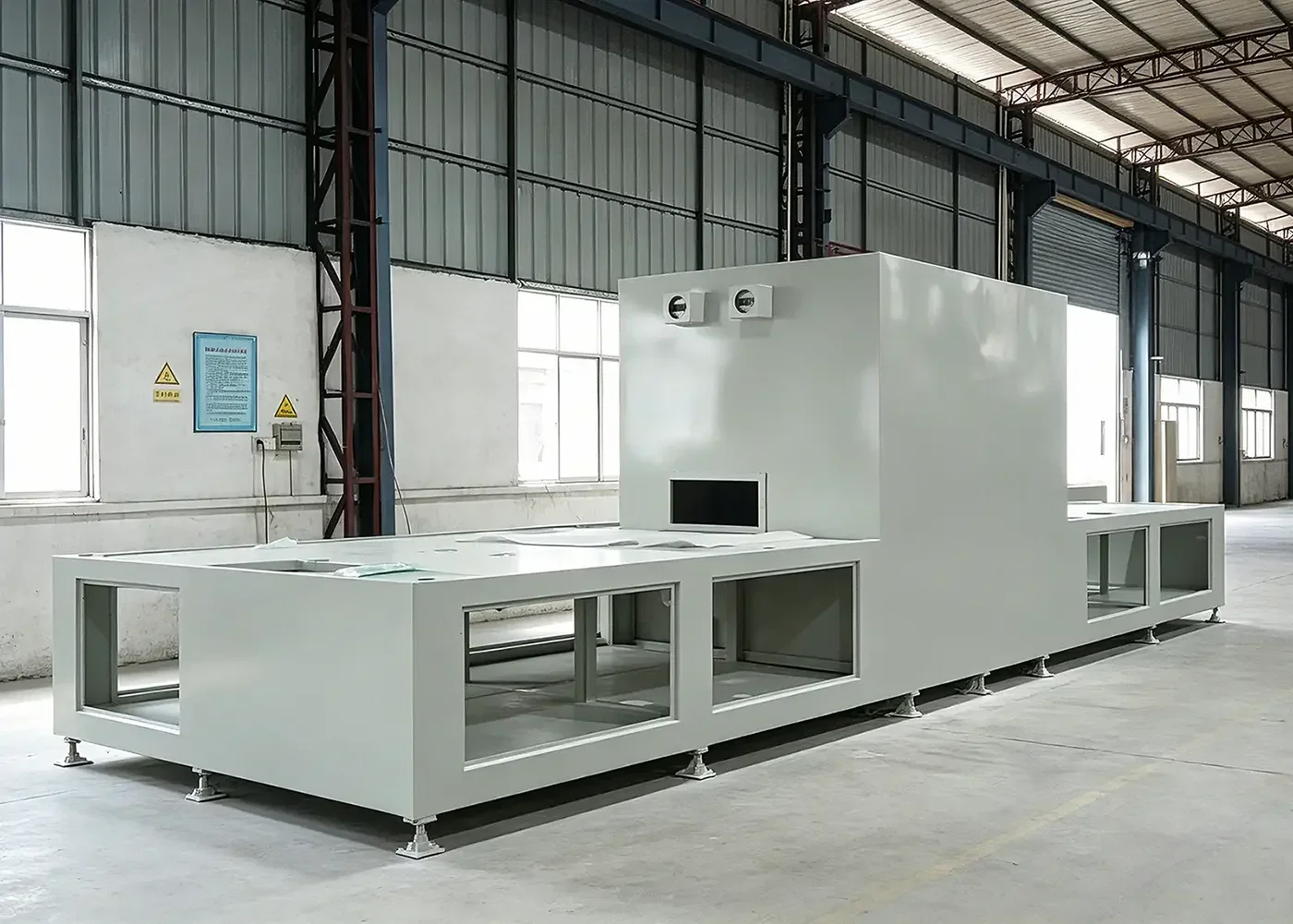

Large X-Ray CT Shield Cabinet
Extra-large customized enclosure solutions with reinforced structures and integrated shielding designs.

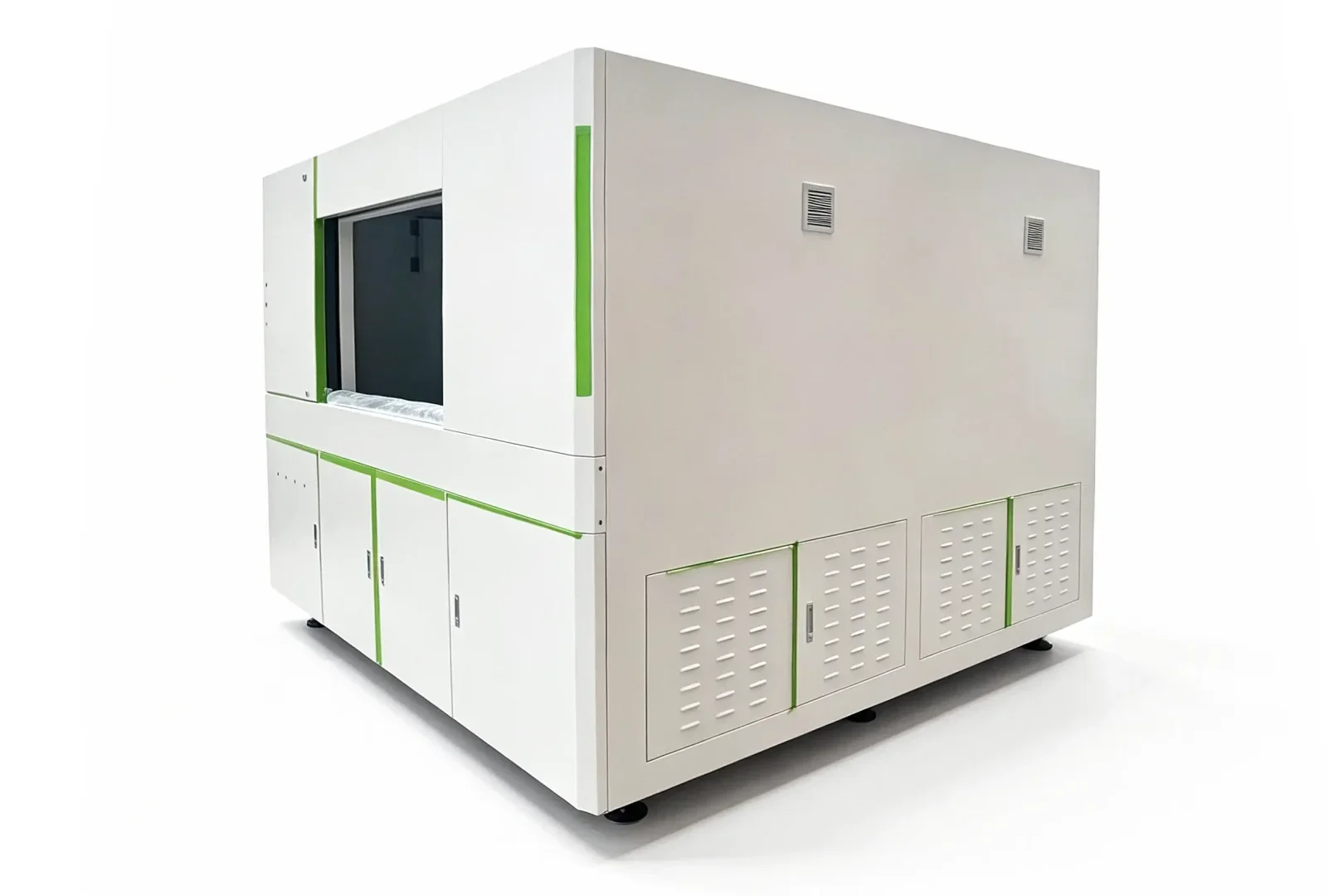

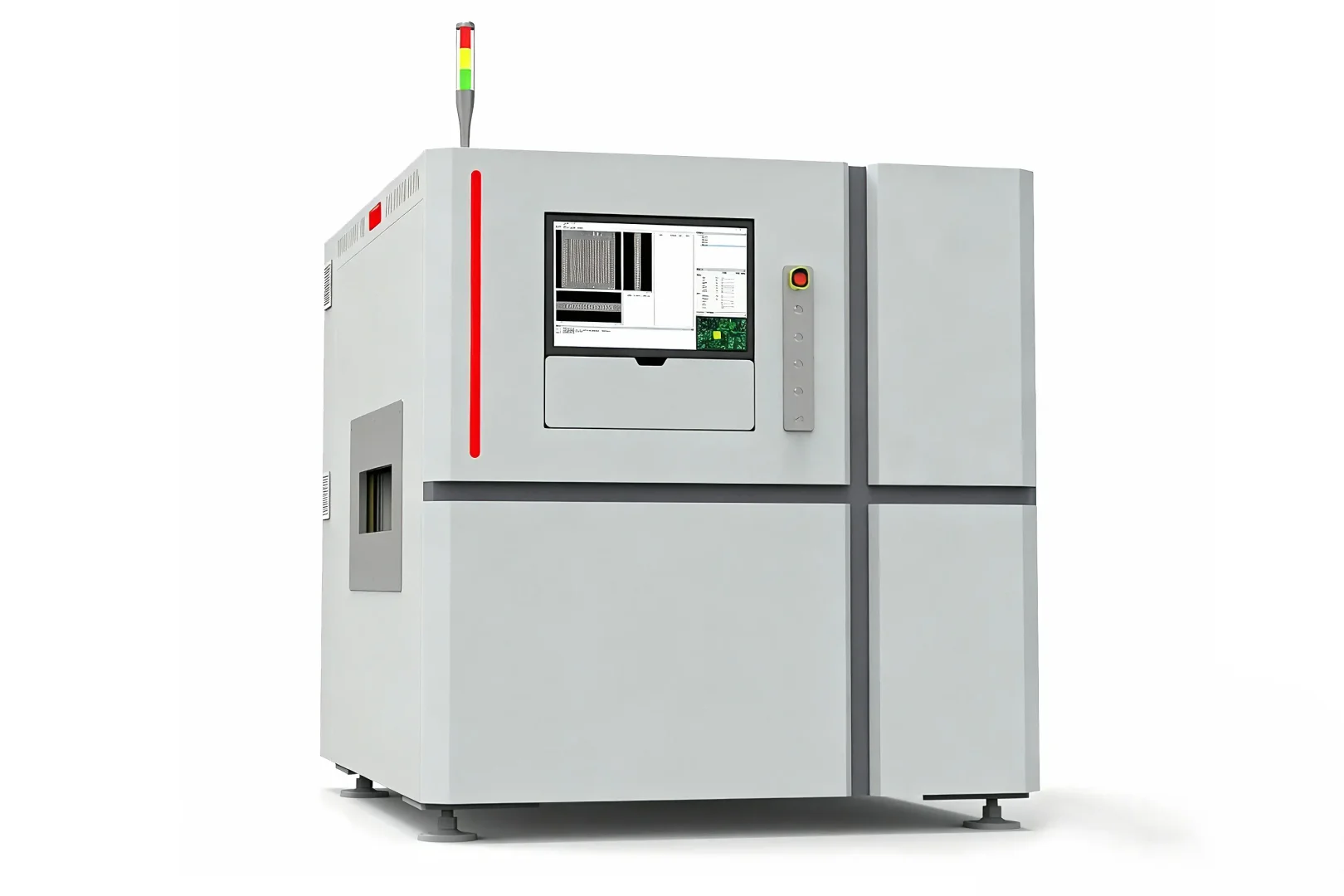

Custom CT Enclosure
Flexible sheet metal housings with customized dimensions, access panels, and mounting structures for CT equipment.

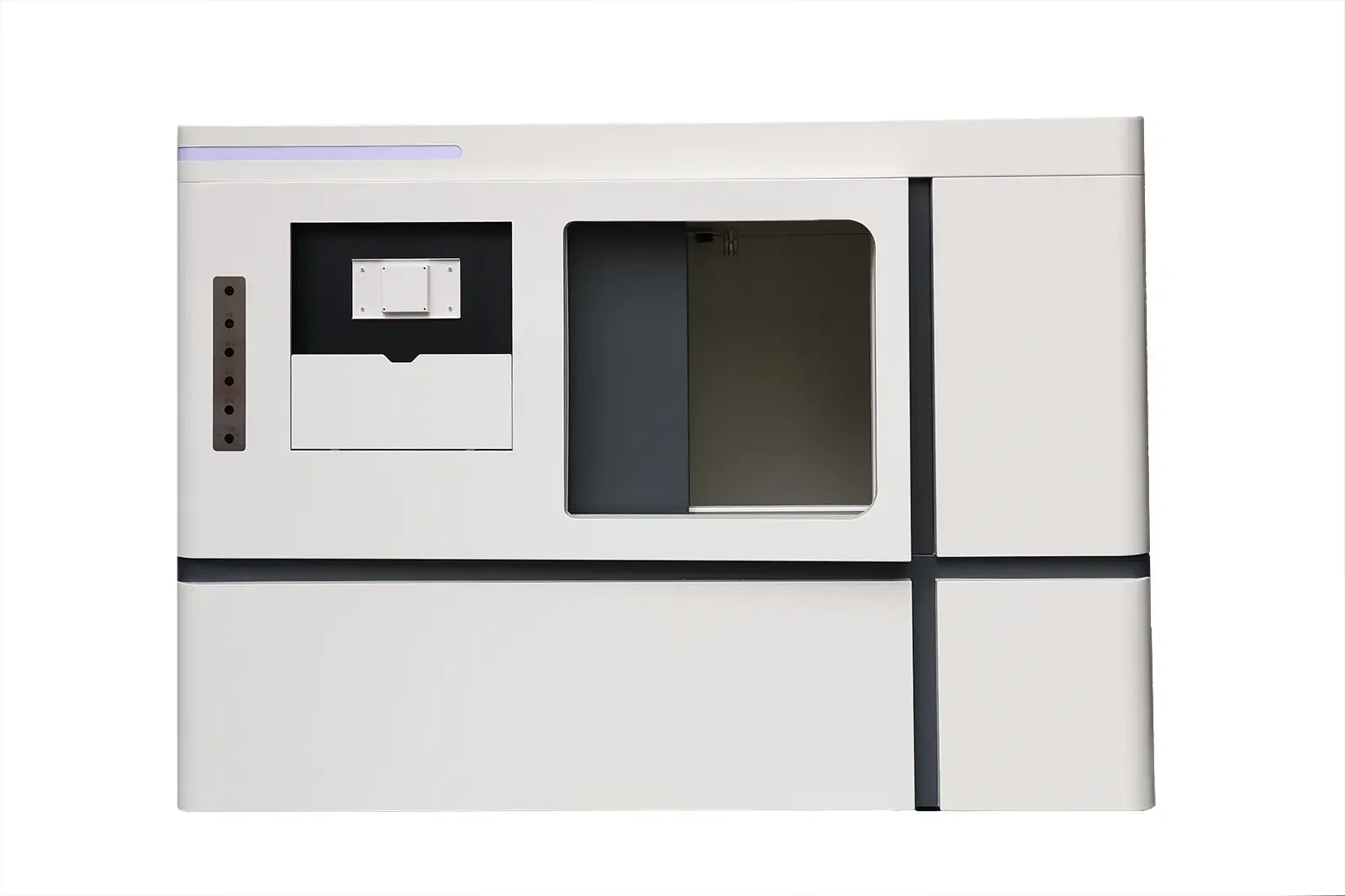

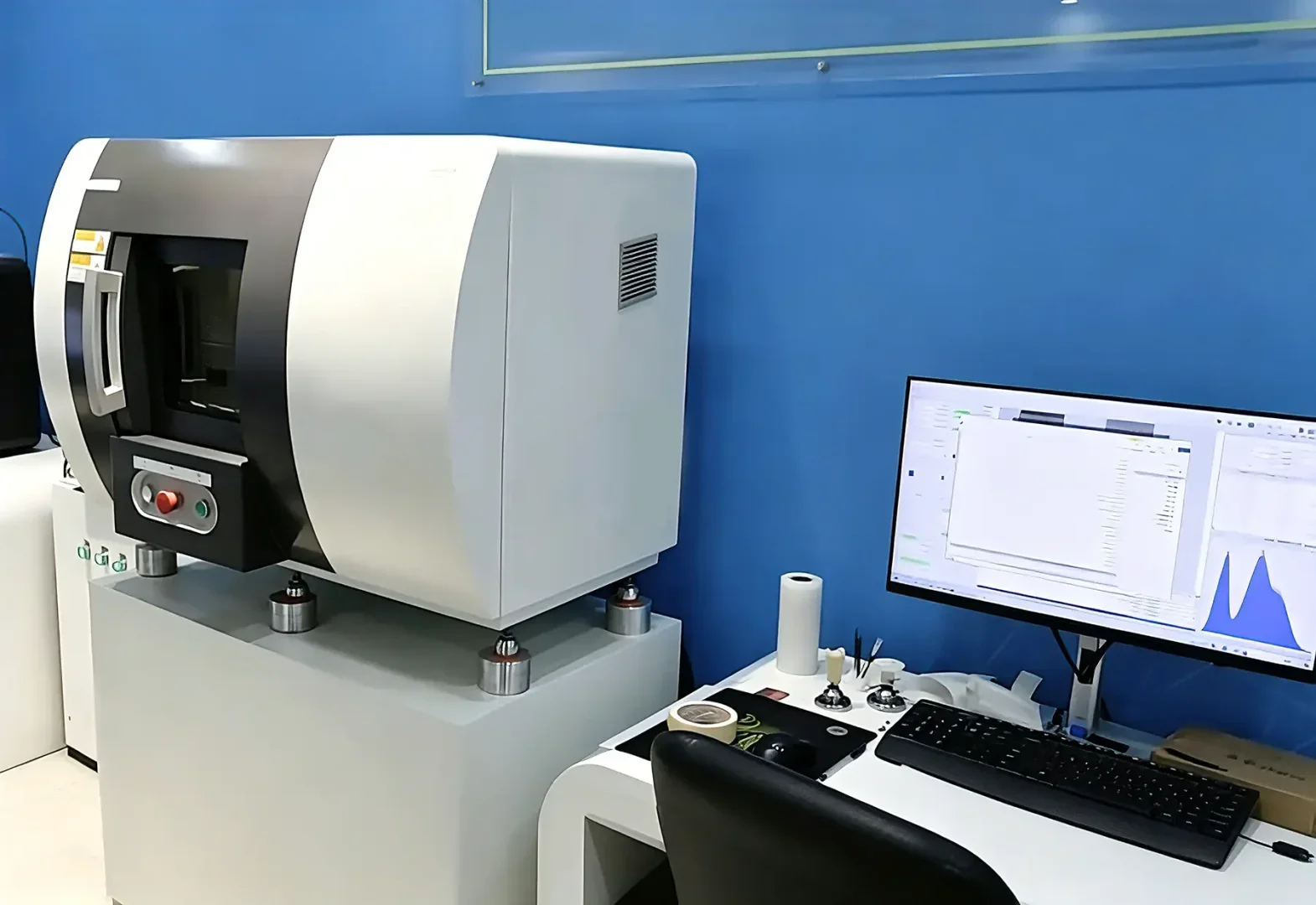

Desktop Mini CT Housing
Compact precision enclosure designed for laboratory CT systems and portable inspection equipment.
Product Specifications
| Standard Item | Specification |
|---|---|
| Dimensional Tolerance | ±0.05mm for frame, lead lining and mounting cutouts |
| Plate Material Thickness | Outer steel shell: 2–10 mm; custom lead shielding thickness available |
| Radiation Shielding Performance | Multi-layer steel-lead composite structure, meets industrial non-destructive testing radiation safety standards |
| Surface Roughness | Ra 1.6, smooth finish for easy decontamination |
| Welding Process | Full-seam TIG welding, polished seamless joints to prevent radiation leakage |

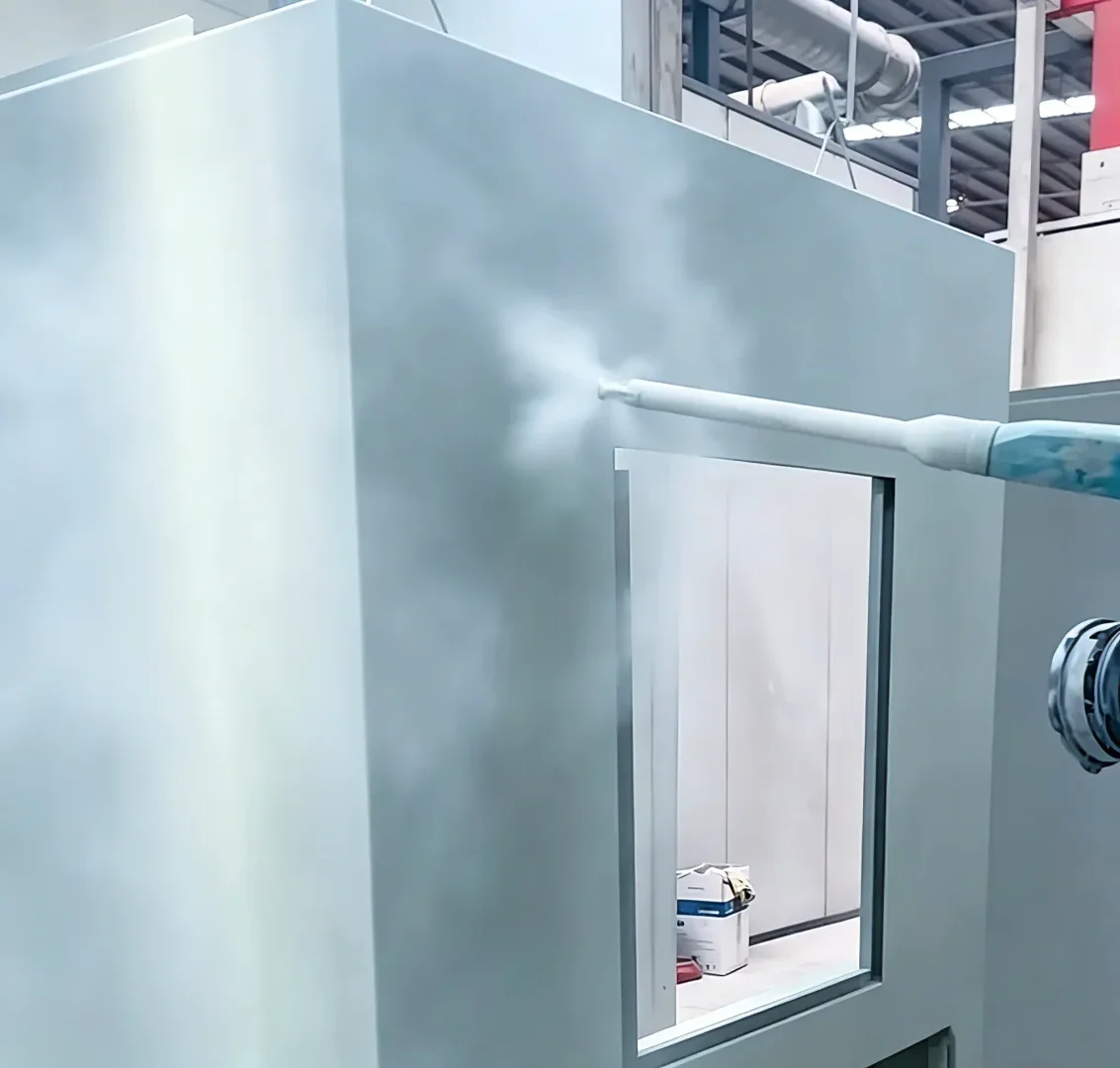

| Surface Treatment | Electrostatic anti-corrosion powder coating, scratch & chemical resistant |
| Operating Temperature Range | -10°C ~ +50°C, stable shielding performance across working environments |
| Service Lifespan | Over 10 years under regular industrial NDT operation |
| Internal Structure | Pre-installed mounting brackets for CT scanning equipment |
| Sealing Grade | Dust-proof sealed cabinet body for workshop long-term use |
Why Choose Our Industrial CT Enclosures
Advanced Radiation Shielding Design
Steel-lead-steel sandwich structures provide effective X-ray attenuation. Precision joints and sealed panel assemblies help prevent radiation leakage.
High-Precision Sheet Metal Fabrication

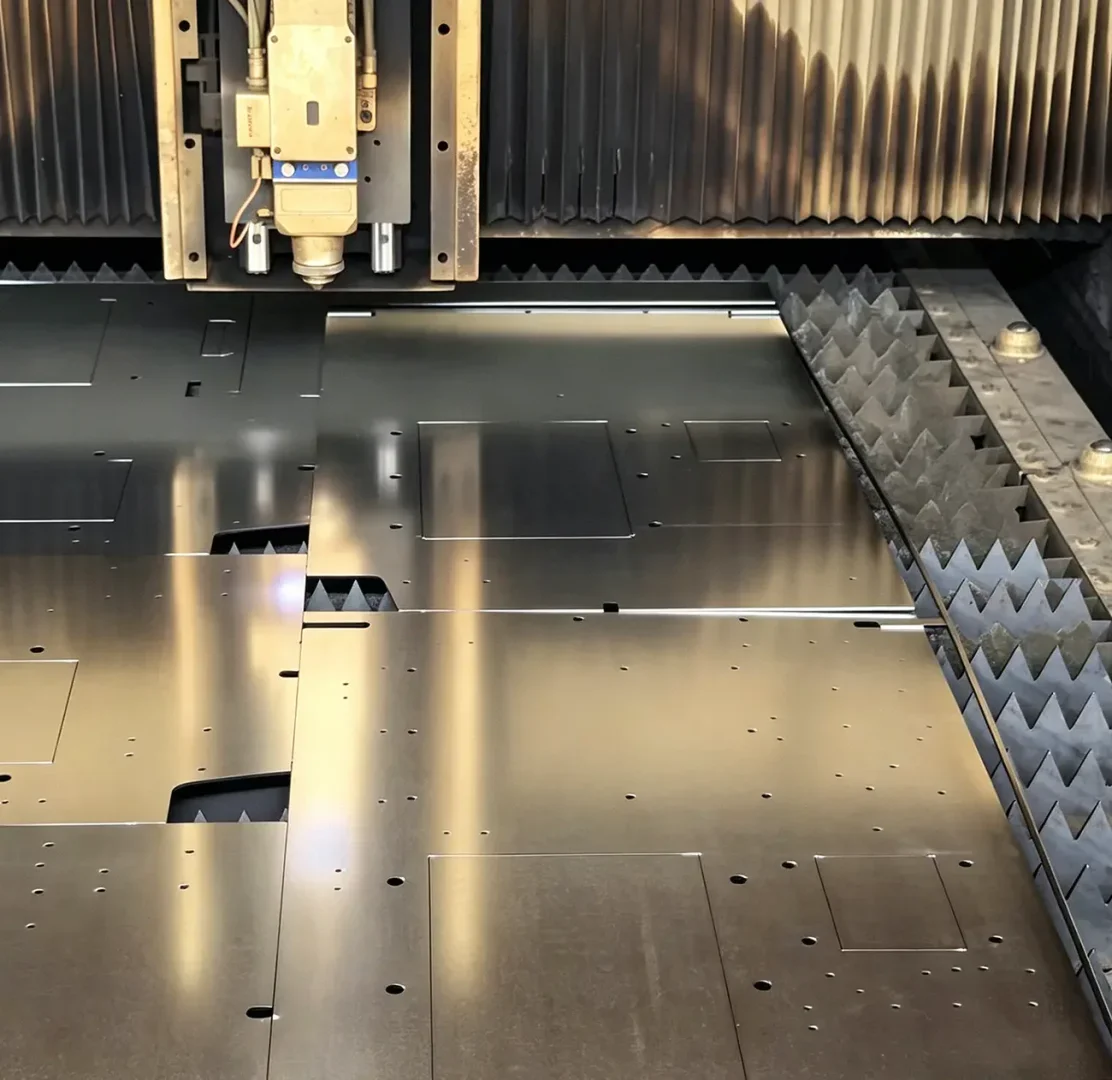

Laser cutting, CNC bending, and controlled assembly ensure accurate dimensions and seamless integration with complex CT systems.
Cleanroom-Ready Surface Finishing
Mirror-polished stainless steel and smooth powder-coated surfaces support dust-sensitive environments and easy maintenance.
Reinforced Structure for Stable Operation
Heavy-duty frames and rigid panel designs improve vibration resistance and structural stability for demanding industrial applications.
Custom CT Enclosure Engineering
Customized doors, viewing windows, cable ports, ventilation, and internal mounting solutions are available to match your CT system requirements.

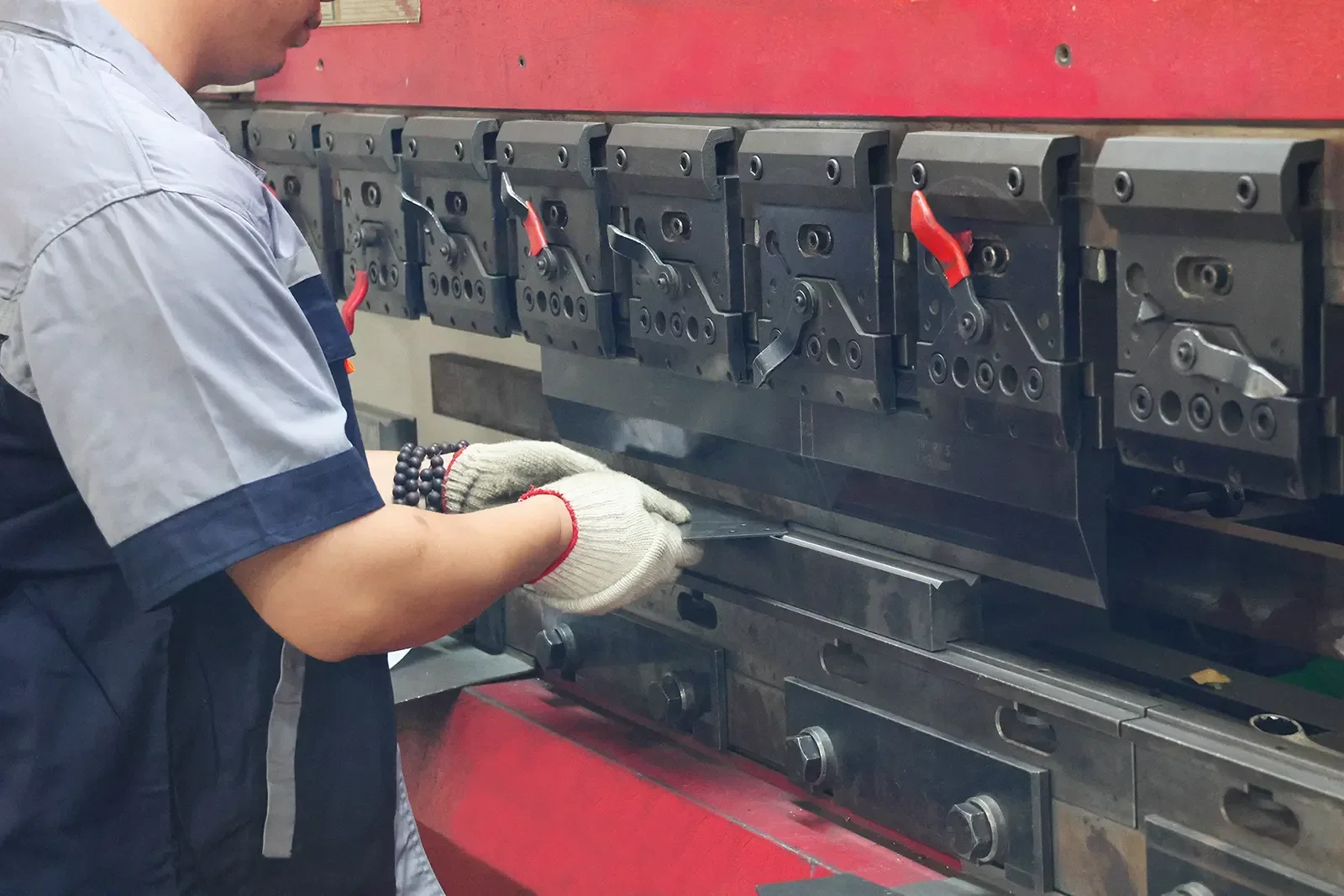

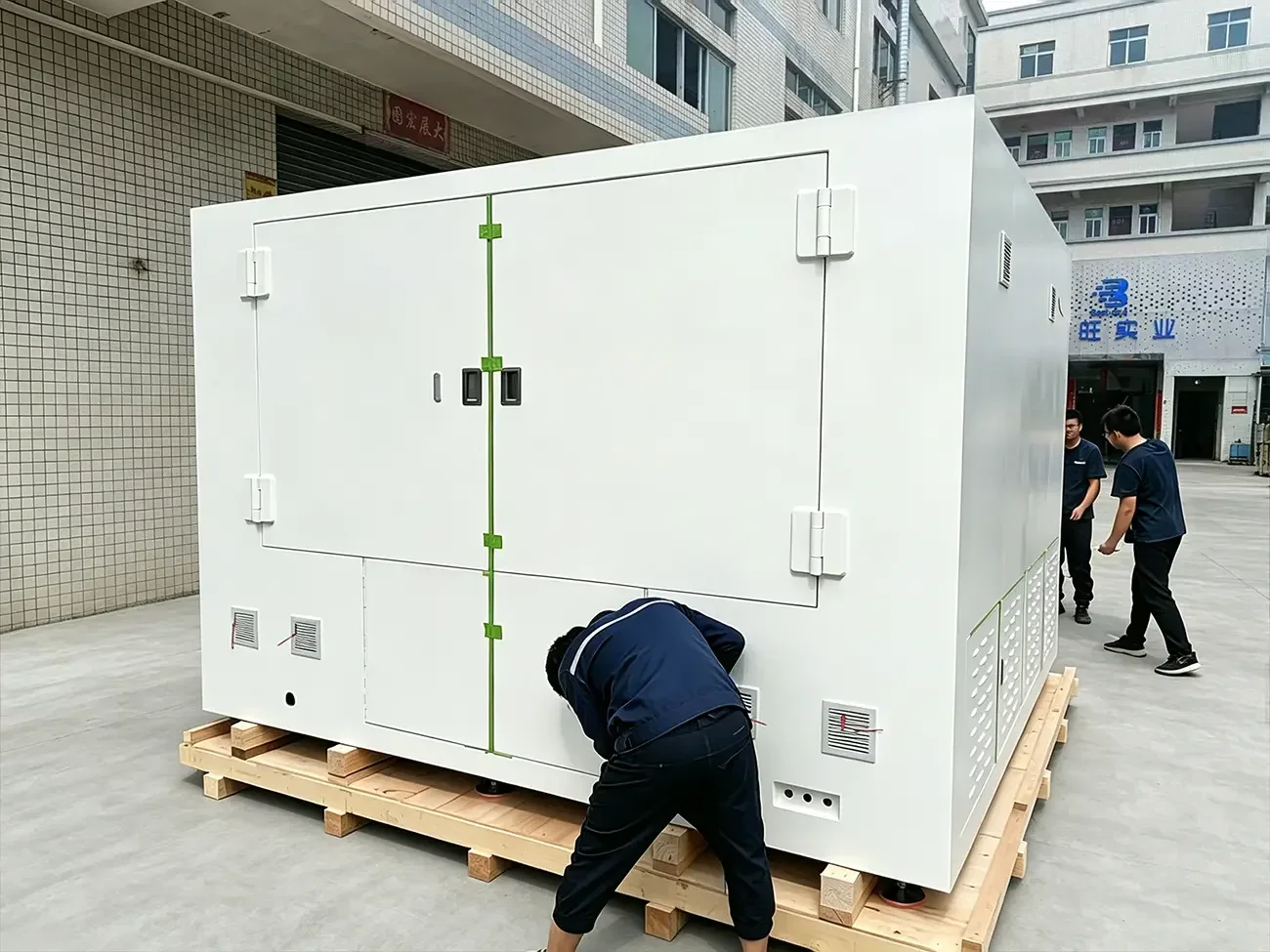

Equipment Fabrication Process

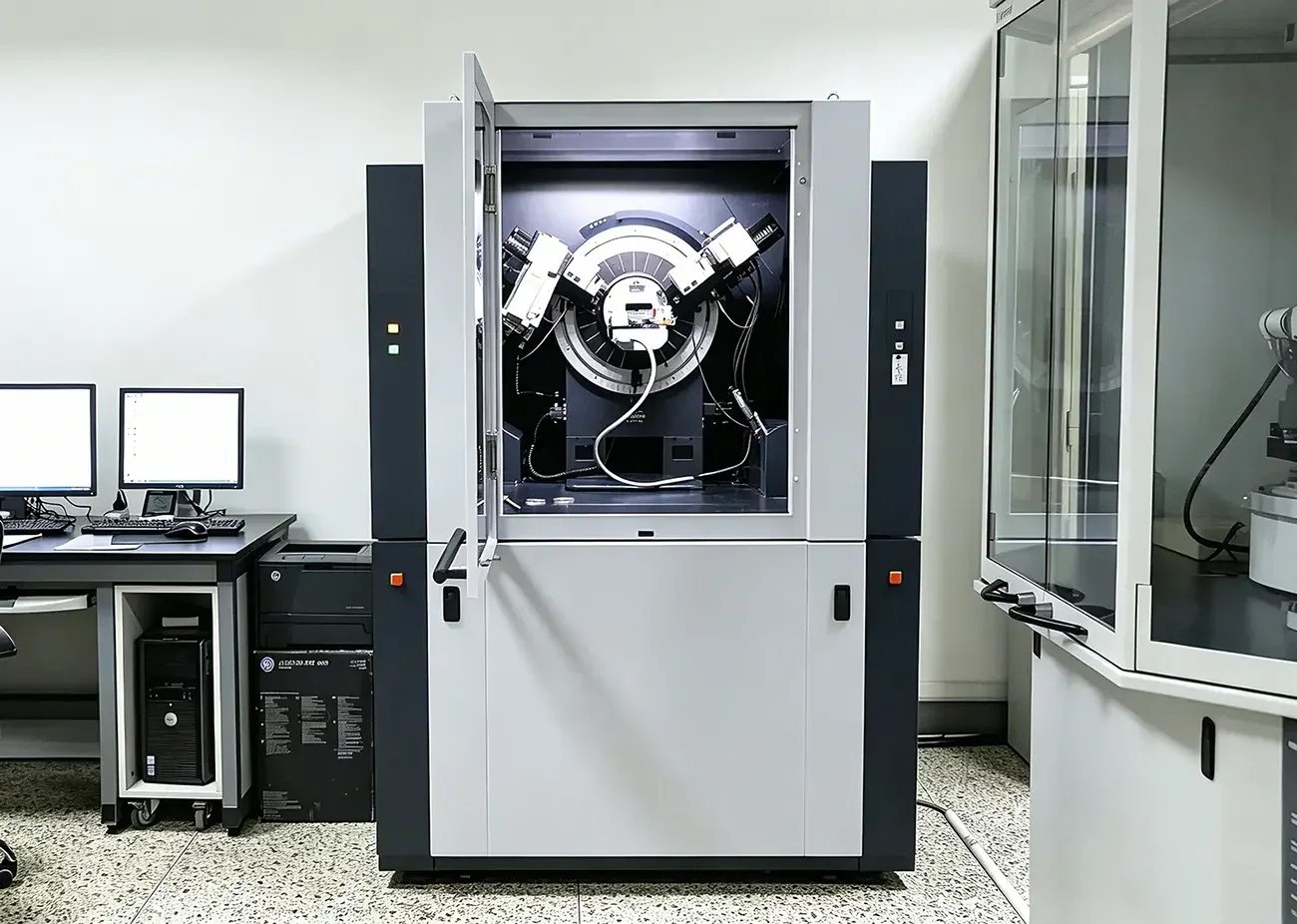

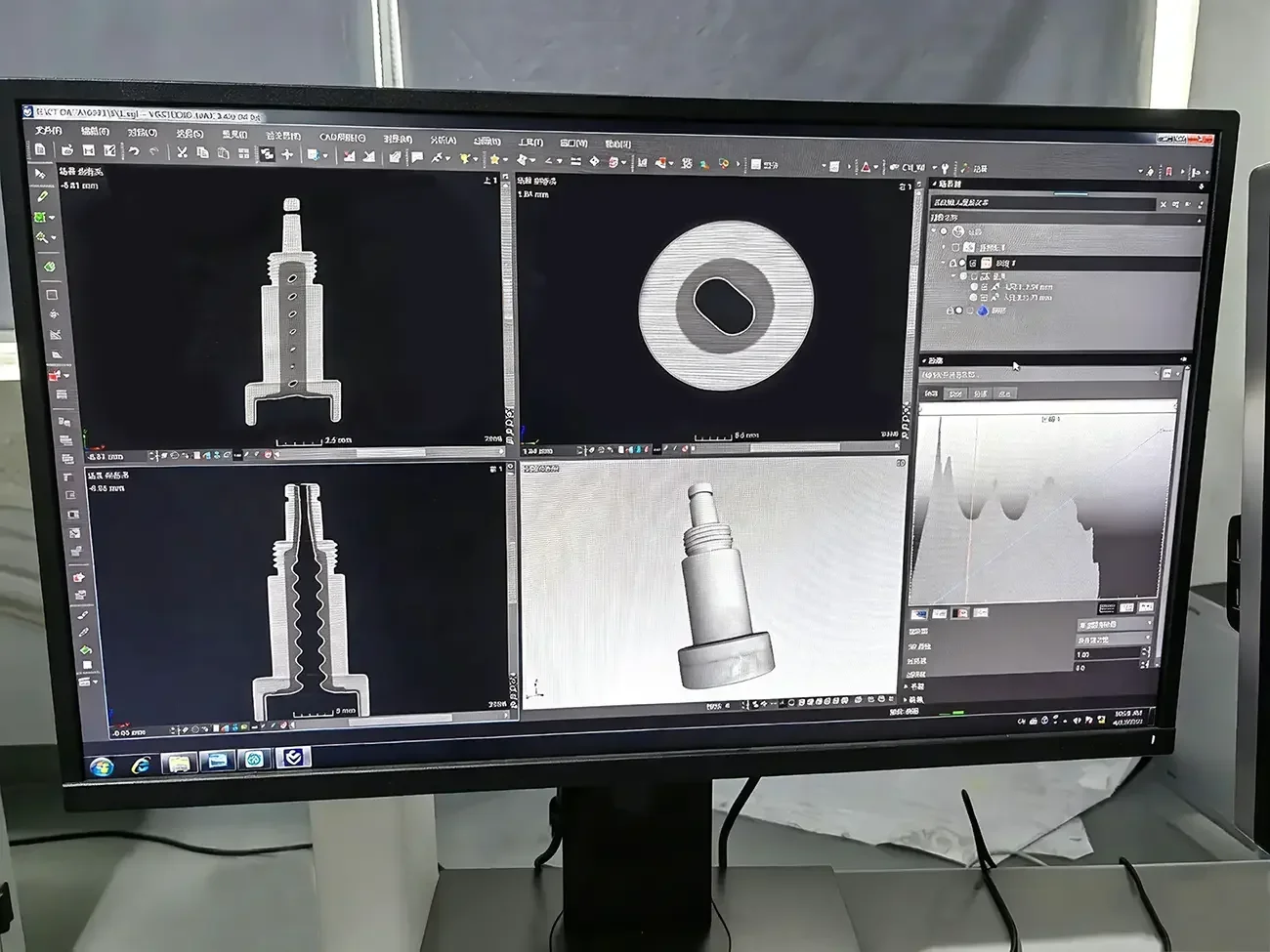

Industrial CT Applications
FAQ
What material makes up your X-ray CT radiation shielding housings?
Our standard shielding structure adopts a steel-lead-steel sandwich panel, secured with industrial rivets to keep lead sheets fixed firmly without welding. Regular cabinet frames use cold rolled steel; semiconductor models feature mirror polished stainless steel exterior panels.
Are your CT enclosures suitable for offshore marine detection vessels?
Yes. We build heavy-duty reinforced X-ray CT housings for marine onboard environments with anti-vibration structural frames to withstand constant vessel movement and salt air exposure.
Can you produce dust-tight CT cabinets for semiconductor cleanroom workshops?
We offer exclusive cleanroom upgrades for semiconductor inspection systems, including fully sealed dust-proof construction and high-gloss mirror polished stainless steel surfaces only for clean class production lines.
What sheet metal fabrication processes do you use for CT shielding cabinets?
All housings go through full in-house processing: CNC laser cutting, precision bending, rivet fastening for lead composite panels, powder coating surface finishing and custom air duct layout machining.

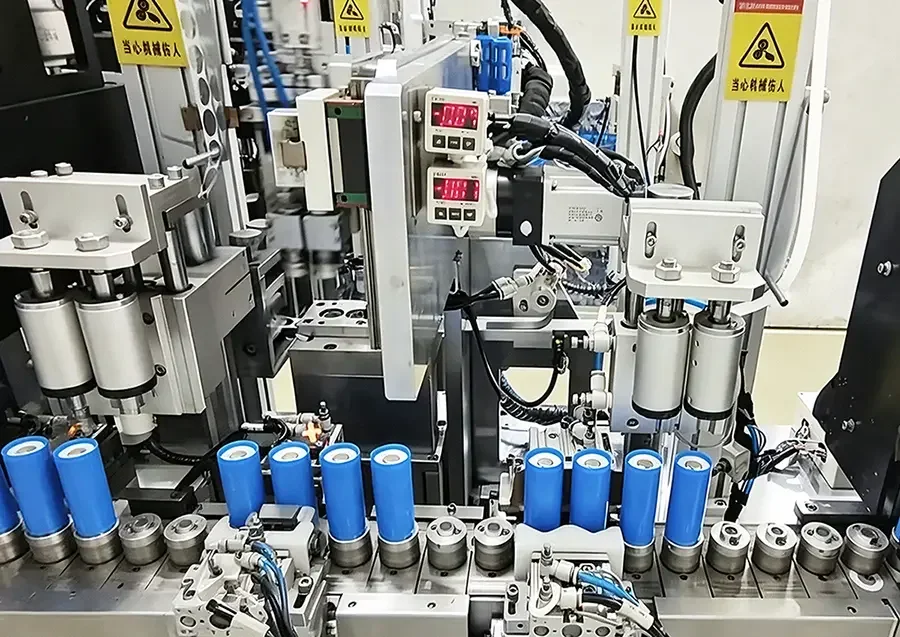

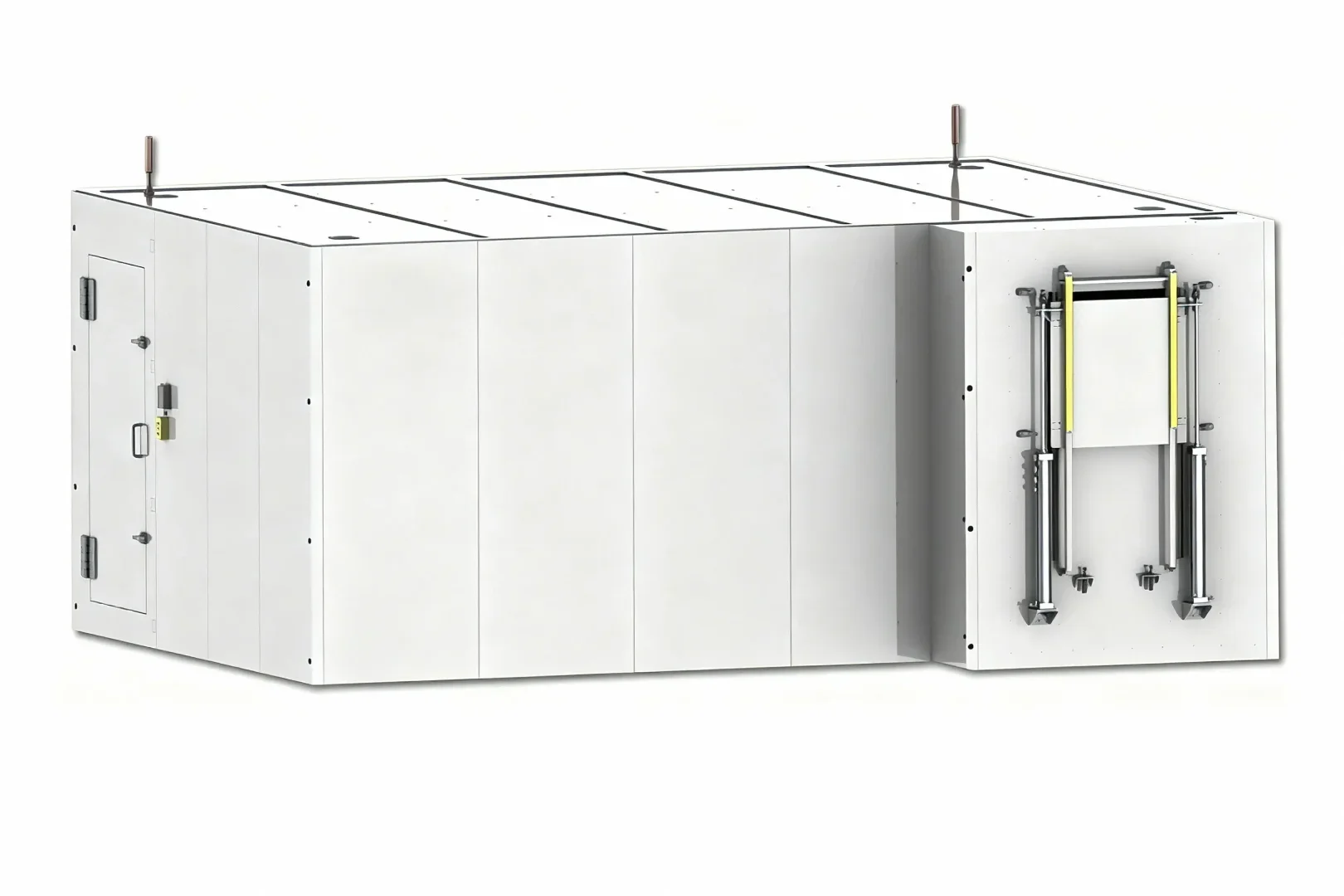

Do you customize X-ray CT shield housings for lithium battery automated production lines?
We manufacture extended continuous tunnel-style shielding enclosures matching full lithium battery inline X-ray CT inspection workflows, with integrated cooling air ducts for long-run production.
Do your CT shielding cabinets meet international radiation safety standards?
All BW X-ray CT enclosures comply with global industrial X-ray radiation protection standards to contain internal radiation leakage for factory NDT operations.

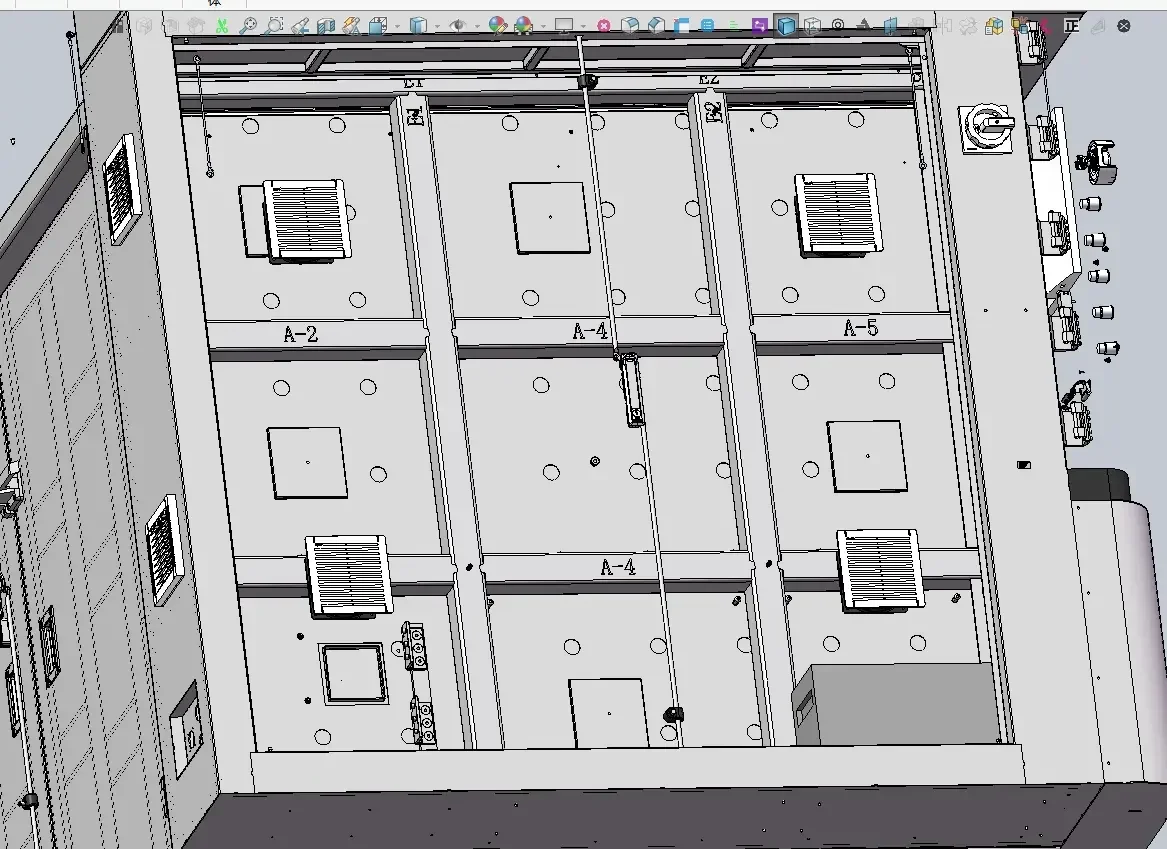

Can you provide CAD internal structure drawings before mass production?
We supply detailed CAD structural drawings of internal shielding frames, ventilation duct layouts and panel assembly for customer confirmation prior to prototype and batch manufacturing.
